Custom Line Styles

Line styles determine the appearance of the lines used to describe many line or shape markups. Revu comes preloaded with several default line styles and a line manner editor allowing users to create their own line styles. Line styles are collected in sets for easy system and can contain multiple lines, text and vector content. Subsequently a new line way is created, it will appear in the Way lists in the Properties Toolbar, Line Fashion toolbar and the Backdrop console.

Creating a New Line Style Ready

Line fashion sets hold related line styles in order to make them easier to observe when choosing a line style for a markup. Line style sets can be exported, much similar Hatch Patterns or Tool Sets, and shared on a network bulldoze or imported past another Revu user.

Line styles and line style sets are managed with the Manage Line Style Sets dialog box. This procedure creates a bare PDF and a line markup in guild to access information technology, only information technology's just 1 of many ways to become to it, including from the Properties Toolbar or Backdrop panel of an existing line or shape markup, or from the Line Way toolbar.

To create a new line way set:

1. Create a blank PDF.
2. Create a line markup anywhere on the PDF.

3. On the Properties Toolbar, go to Line Style > Manage.

   • If the Properties Toolbar is not currently visible, go to Tools > Toolbars >Properties Toolbar to testify it.



   The Manage Line Manner Sets dialog box appears.



4. Click Add together. The Add Line Fashion Ready dialog box appears.



5. Select New.
6. Enter a name for the line manner set in the Title field. As you lot enter the proper name, the line style set'southward file name is automatically populated in the Location field.
7. To change the default save location of this line style set up, click and select the desired local or network folder.
8. To save the location of this line manner set relative to your electric current Profile, select Relative Path. To salve the full path instead, uncheck this box. For more data about choosing between Relative or Total Paths, see Understanding Relative vs Full Paths.

9. Click OK. The Edit Line Style Gear up dialog box appears.



10. At this point, you lot can add line styles to the line style set if desired. See Creating a New Line Fashion in an Existing Ready below (skip alee to step 6). Otherwise, click OK.
11. Discard the PDF created for this process.

Creating a New Line Fashion in an Existing Ready

Line styles define the appearance of lines used in virtually line and shape markups also as many others. Revu comes with several different line styles, just if desired, you lot tin create a multifariousness of custom styles to adapt nearly whatever need.

Line styles and line style sets are managed with the Manage Line Style Sets dialog box. This process creates a blank PDF and a line markup in order to access it, but information technology's just one of many ways to go to it, including from the Backdrop Toolbar or Properties panel of an existing line or shape markup, or from the Line Style toolbar.

To create a new line manner:

1. Create a blank PDF.
2. Create a line markup anywhere on the PDF.

3. On the Backdrop Toolbar, go to Line Way > Manage.

   • If the Properties Toolbar is non currently visible, become to Tools > Toolbars >Properties Toolbar to show it.



   The Manage Line Fashion Sets dialog box appears.

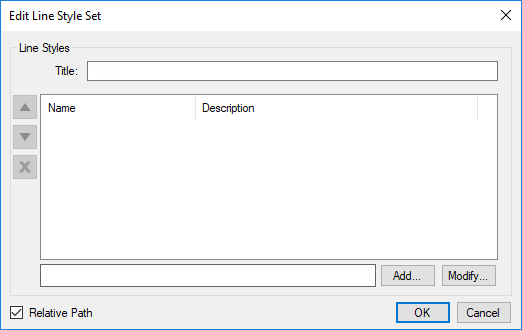

4. Select the desired line mode set and click Modify. Note that the Standard line manner gear up cannot be modified. The Edit Line Style Set dialog box appears.

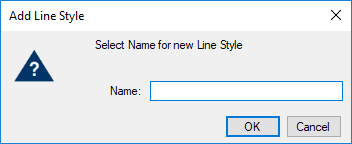

5. Click Add. The Add Line Style dialog box appears.

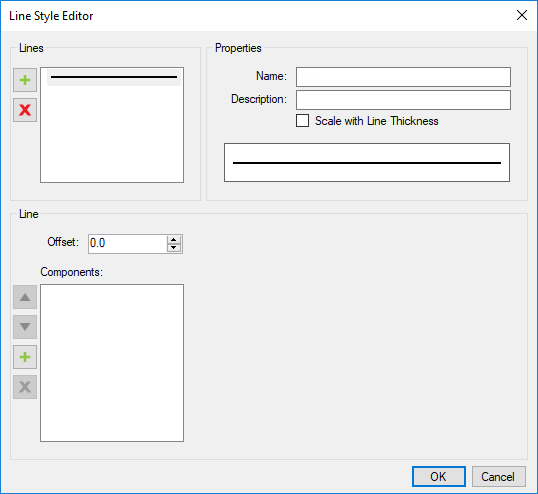

6. Enter a proper noun for the line manner in the Name field and click OK. The Line Style Editor appears.



7. The line style beingness created is previewed in the Backdrop section of the editor. Review it equally yous add or alter line elements.
8. Make up one's mind the number of lines you lot want in this line style. By default, the line style starts with one. To add some other, click to left of the Lines list. To remove a line, select it and click .
9. To control a line's position, select it from the Lines list and accommodate the First setting. By default, the first line at 0.0 (the eye). The offset range is -10.0 to x.0.

10. By default, lines are straight and unbroken. This can be changed past adding line components.

    To add components:

    1. Select the desired line from the Lines list and click to left of the Components list. The Add Component dialog box appears.



    2. Select a component from the Blazon bill of fare. The following types are available:
       • Nuance: A visible line segment (the width is adaptable)
       • Space: A gap in the line (the width is adaptable)
       • Dot: A round element in the line (no options)
       • Text: Supported every bit a segment in a line (for instance, -----GAS-----GAS-----GAS-----)
         • Options include: (Text, Font, Font Size, Font Style, and selection to Show Text Upright)
         • Width is automatically adamant based on Font and Font Size
       • Vector: An editor appears when a vector element is chosen.
         • Vector settings:
           • Padding: This determines how much of a infinite to accept on either side of the vector
           • Scale: The calibration of the symbol can be changed with respect to the line
           • Fill: If there are closed shapes in the symbol, if this option is selected they will be filled
           • Snapping Options (Grid/Content)
         • The following tools are bachelor to create the symbols:
           • Line: Simple line with Start and Endpoints
           • Arc: Similar to our Arc tool, the arc is circular in nature, the start, endpoint, and bounding square tin be adjusted
           • Circle
    3. Click OK. The component is added to the line. Make the desired adjustments, equally available.
    4. Some components are meant to work together. For case, a dashed line is created by combining a Dash component and a Space component on the same line and adjusting the width of each until the desired expect is achieved.  Repeat this process to add more components to the line as needed to create the desired advent.

11. To force this line style to automatically calibration with its line width property when it is used, select Scale with Line Thickness.
12. If desired, enter a brief description of this line style in the Description field.
13. Click OK to dismiss each of the dialog boxes. The new line style is set for use.
14. Discard the PDF created for this procedure.

Modifying a Line Style

Existing custom line styles can be modified to see current needs. Changing a line style has no effect on markups that have already been created using the line style.

Line styles and line manner sets are managed with the Manage Line Style Sets dialog box. This process creates a blank PDF and a line markup in society to admission it, just it's just one of many means to go to it, including from the Properties Toolbar or Properties panel of an existing line or shape markup, or from the Line Way toolbar.

To modify a line style:

1. Create a blank PDF.
2. Create a line markup anywhere on the PDF.

3. On the Backdrop Toolbar, become to Line Style > Manage.

   • If the Properties Toolbar is not currently visible, go to Tools > Toolbars >Properties Toolbar to show it.



   The Manage Line Way Sets dialog box appears.



4. Select the line style set that contains the desired line manner and click Change. Note that the Standard line style set cannot exist modified. The Edit Line Style Set dialog box appears.



5. Select the desired line style and click Modify. The Line Fashion Editor appears.



6. Modify the lines and components, equally desired. Run across Creating a New Line Style in an Existing Set for an overview of what each setting does.
7. Click OK to dismiss each of the dialog boxes.
8. Discard the PDF created for this process.

Importing or Exporting a Line Fashion Set

Line style sets tin can exist imported and exported, much like Hatch Patterns or Tool Sets. Imported line fashion sets are copies of existing line style sets intended for the utilise of the local user only. If the local user makes any changes to the line style set, nobody else is afflicted by the alter. To access a shared line style set (1 that is used by multiple users across a network), run into Sharing a Line Style Set.

Line styles and line fashion sets are managed with the Manage Line Style Sets dialog box. This procedure creates a blank PDF and a line markup in order to admission it, just it's just one of many means to get to it, including from the Backdrop Toolbar or Backdrop panel of an existing line or shape markup, or from the Line Fashion toolbar.

To import or consign a line way set:

1. Create a blank PDF.
2. Create a line markup anywhere on the PDF.

3. On the Properties Toolbar, go to Line Mode > Manage.

   • If the Properties Toolbar is not currently visible, go to Tools > Toolbars >Properties Toolbar to show information technology.



   The Manage Line Style Sets dialog box appears.



4. To import a line style set, click Import, then select the desired .blx file and click Open up. The selected line style set is automatically imported.

   Notation: Double-clicking a .blx file in Explorer will too automatically import information technology.

5. To export a line fashion set, select it and click Export, then select a binder into which to salvage it and click Relieve.
6. Click OK.
7. Discard the PDF created for this procedure.

Sharing a Line Manner Set

Shared line style sets are used past multiple Revu users collaboratively. The line style set remains in its original location and can exist accessed by several users at once. If the line style gear up is changed (for example, if new line styles are added or existing line styles are modified), each user is affected by those changes. Users attempting to modify shared line mode sets are subject field to normal folder permissions on the shared file.

Line styles and line way sets are managed with the Manage Line Mode Sets dialog box. This procedure creates a blank PDF and a line markup in order to admission information technology, only it's just one of many ways to become to information technology, including from the Properties Toolbar or Properties console of an existing line or shape markup, or from the Line Fashion toolbar.

To add a shared line fashion gear up:

1. Create a blank PDF.
2. Create a line markup anywhere on the PDF.

3. On the Properties Toolbar, go to Line Way > Manage.

   • If the Properties Toolbar is not currently visible, go to Tools > Toolbars >Properties Toolbar to show it.



   The Manage Line Style Sets dialog box appears.



4. Click Add. The Add Line Style Set dialog box appears.



5. Select Existing.
6. If you know the path to the shared line style prepare, enter it in the Location field. Otherwise, click to navigate to information technology.

7. To save the location of the shared line style set relative to your electric current Contour, select Relative Path. To relieve the full path instead, uncheck this box. For more information about choosing between Relative or Full Paths, run across Understanding Relative vs Full Paths.

8. Click OK to dismiss each of the dialog boxes.
9. Discard the PDF created for this procedure.
